SB200 & CSB200 Series

SB and CSB inserts are light-duty ball bearing inserts with set screw locking and a narrow inner ring profile designed for compact installations. Their reduced width makes them well-suited for auxiliary shafts, small conveyors, light agricultural equipment, and other space-constrained applications with low to moderate load demands.

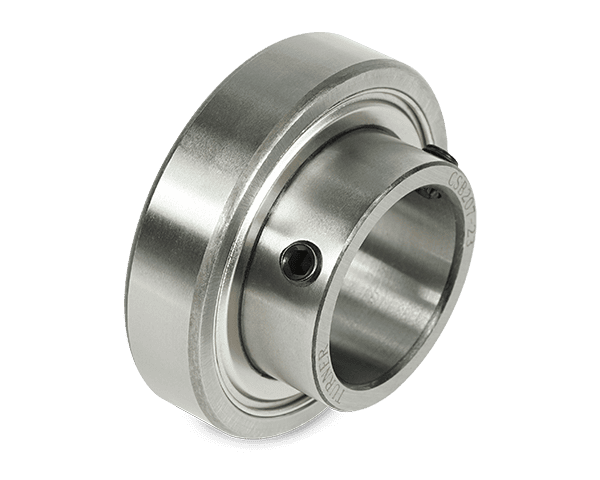

SB inserts feature a spherical outer diameter that allows for self-alignment within compatible housings. CSB inserts have a cylindrical outer diameter and are typically used in applications where the bearing is installed directly into a machined bore rather than a standard mounted housing. This makes them suitable for equipment where alignment is controlled by the surrounding structure.

Annealed set-screw ports and 120° screw spacing help maintain inner-ring roundness, reduce cracking risk, and support consistent shaft retention.

Narrow inner rings support compact installations where space is limited.

Spherical and cylindrical outer diameter options support self-aligning mounted applications (SB) or bore-mounted configurations (CSB).

Available in relubricatable and non-relubricatable configurations. Relubricatable options allow grease to be replenished through the housing zerk and outer ring port, while “N” suffix options are factory-lubricated and sealed for applications with space or maintenance constraints.
