Mounted Spherical Roller Bearings (S2000)
Turner mounted spherical roller bearings are built for heavy loads, shock, vibration, and unavoidable misalignment in continuous-duty systems. The spherical roller design maintains high load capacity while accommodating shaft deflection and structural movement. Integrated housing, sealing, and lubrication systems support long service life in harsh, contaminated environments.

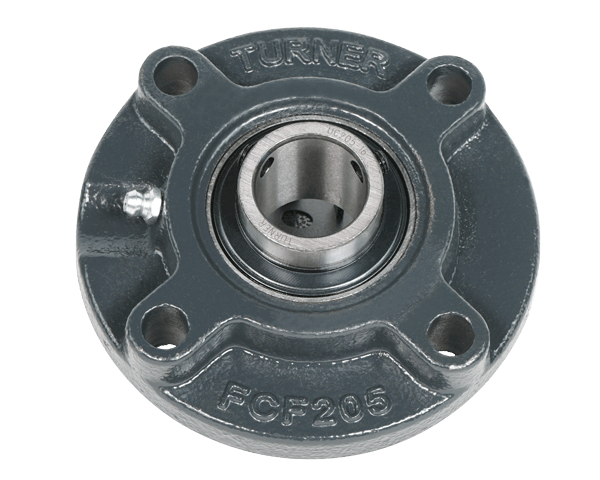

Flange Cartridge Units
SFC Series
Mounted spherical roller flange cartridge units install into a machined bore within the equipment frame rather than mounting to a base or surface. The surrounding structure carries the load, creating a compact, high-capacity support arrangement that integrates directly into the machine design. They’re well-suited to gearboxes, machined conveyor head and tail frames, processing equipment side plates, and other heavy-duty installations designed with precision-bored bearing seats.
Compact cartridge design eliminates the need for external mounting feet, making efficient use of available installation space.
Bore-mounted construction transfers bearing loads directly into precision-machined equipment frames for rigid support.
Precision-machined outer geometry provides accurate fits and alignment in properly prepared frame bores.
The Turner Advantage
Self-aligning spherical roller bearing geometry maintains high load capacity while accommodating shaft deflection, frame movement, and mounting variation.
SAE 52100 steel inner and outer rings deliver consistent hardness and fatigue resistance under heavy load.
One-piece, solid-base, cast-iron housings with mild steel locking collars provide strength, rigidity, and improved setscrew grip and toughness in demanding applications. Large-bore units are available with a double-collar system for added security.
Available with steel housings and eccentric locking collars for greater resistance to impact loads and severe operating conditions, as well as increased holding force for a secure shaft connection in heavy-duty applications.
PTFE labyrinth seals protect against moisture and contamination while maintaining performance in high-speed and high-temperature applications.
Grease purge and pressure relief valves support controlled relubrication and protect seals from over-pressurization.
A standard 1/8-27 NPT grease fitting supports manual or automatic lubrication systems.
Available in fixed and expansion configurations to properly locate the shaft while accommodating thermal growth and axial movement during operation.
